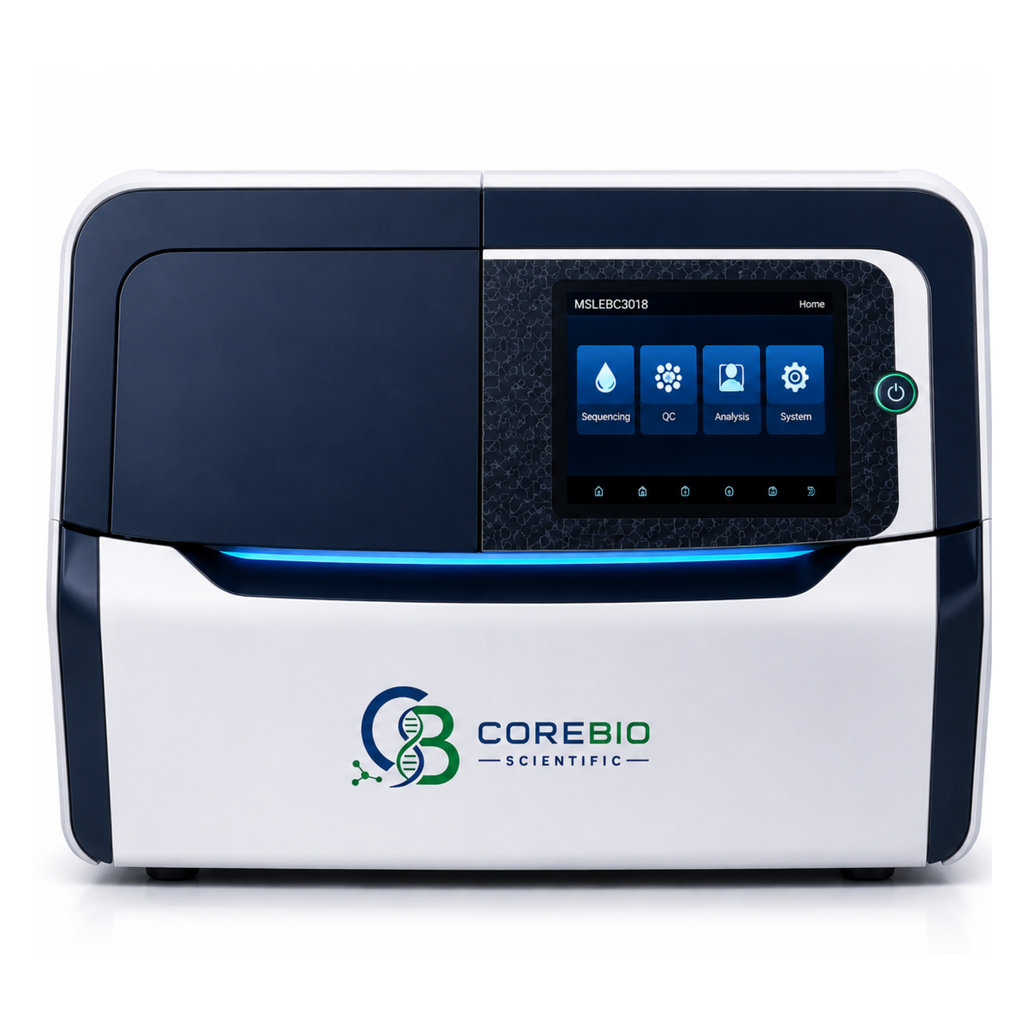

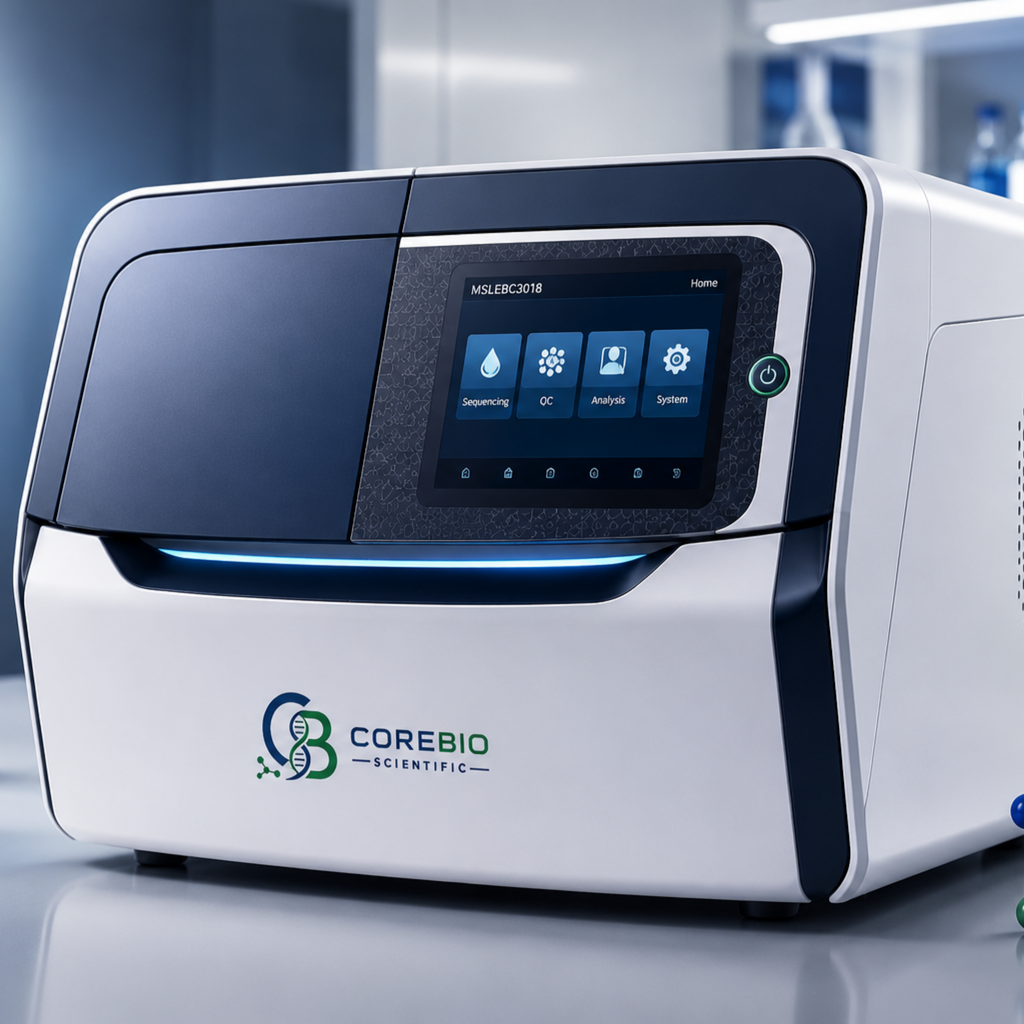

Corebio X1 High-Throughput Benchtop DNA Sequencer

For Research Use Only. Not for use in diagnostic procedures.

Overview

The CoreBio X1 is a flexible benchtop next-generation sequencing platform designed for research laboratories requiring scalable sequencing throughput without the footprint of a large-scale instrument. Supporting multiple sequencing chip configurations, the X1 allows laboratories to match sequencing capacity precisely to their sample volume, application, and budget requirements — from small-scale targeted panels to mid-throughput whole-genome studies.

Key Specifications

• Catalog Number: CBS-SEQ-X1
• Instrument Format: Benchtop
• Sequencing Technology: Next-generation sequencing (NGS)
• Read Length: 200 bp – 600 bp
• Output Range: ~0.3 Gb – 25 Gb (configuration-dependent)
• Read Count: 2–3 million to 100–130 million reads (chip-dependent)
• Run Time: Configuration-dependent
• Connectivity: Ethernet and USB
• Data Storage: Up to ~25 TB onboard server storage (configuration-dependent)
• Power: 100–240 V AC, 50/60 Hz
• Operating Environment: Standard laboratory conditions

Chip Configurations

• X1 Chip S: ~2–3 million reads | ~0.3–0.5 Gb output | Short run time
• X1 Chip M: ~20–30 million reads | ~4–6 Gb output | Mid throughput
• X1 Chip L: ~100–130 million reads | ~20–25 Gb output | High throughput

Key Features

• Flexible chip-based throughput scales with project demands
• Integrated sequencing and data analysis workflow in a unified environment
• Compact benchtop design suitable for standard laboratory bench installation
• Supports 200–600 bp read lengths for diverse application requirements
• Ethernet and USB connectivity for seamless data transfer and remote monitoring
• High-capacity onboard storage for large-scale datasets

Applications

• Targeted sequencing and gene panels
• Whole-genome sequencing (small genomes)
• RNA sequencing and transcriptomics
• Microbial genomics and metagenomics
• Amplicon sequencing
• Variant detection and mutation analysis
• Epigenomics

All trademarks are the property of CoreBio Scientific or their respective owners.
